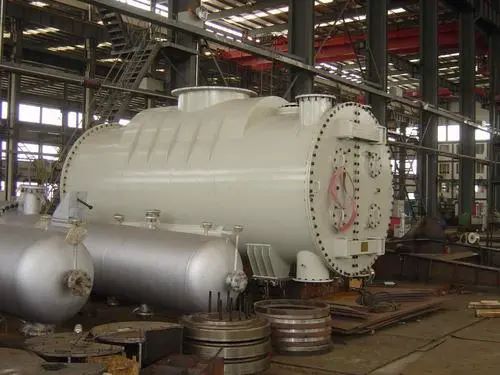

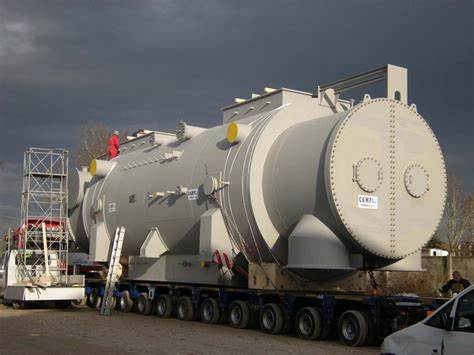

Surface Condensers:

Surface Condensers are the most commonly used condensers in modern power plants. The exhaust steam from the turbine flows on the shell side(under vacuum) of the condensers, while the plant's circulating water flows in the tube side.

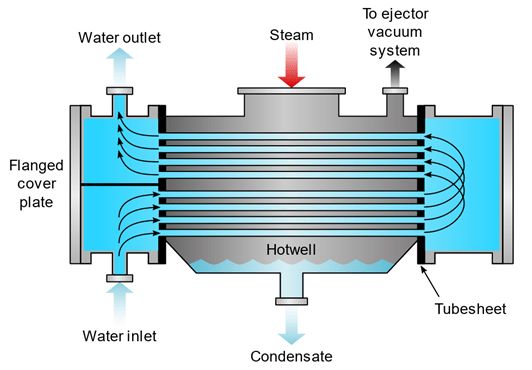

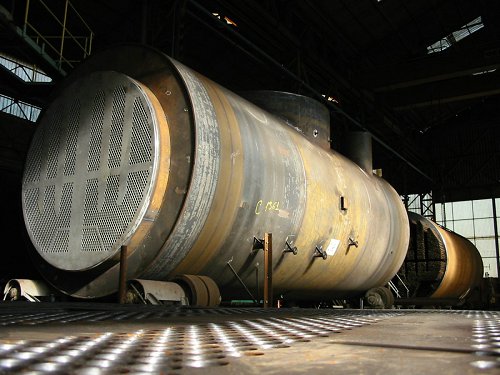

(Water outlet, steam, to ejector vacuum system, tubes sheet, condensate, water inlet, flangedd cover plate)

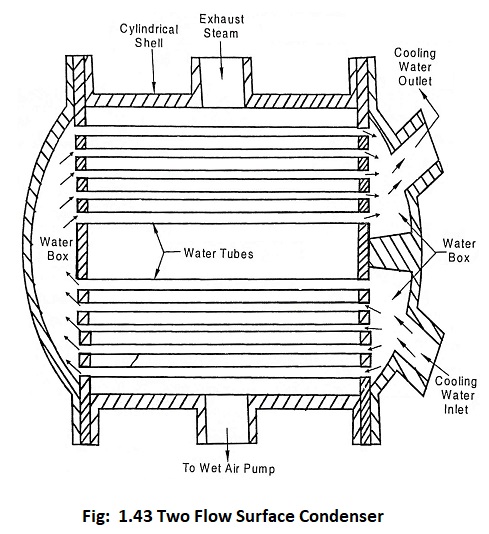

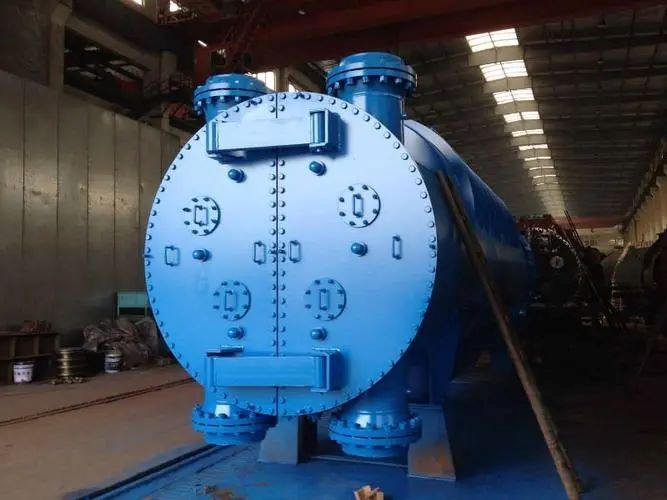

Two Flow Surface Condenser: (Cylindrical shell, exhaust steam, cooling water outlet, water box, cooling water inlet, to wet air pump, water:tubes, water box)
