Heat Exchanger Shell
A shell-and-tube heat exchanger is a class of heat exchanger designs. It is the most common type of heat exchanger in oil refineries and other large chemical processes, and is suited for higher-pressure applications. As its name implies, this type of heat exchanger consists of a shell (a large pressure vessel) with a bundle of tubes inside it. One fluid runs through the tubes, and another fluid flows over the tubes (through the shell) to transfer heat between the two fluids. The set of tubes is called a tube bundle, and may be composed of several types of tubes: plain, longitudinally finned, etc.
Specifications
temperature-resistant;
Stable quality;
Easy cleaning and maintenance;
reasonable price;

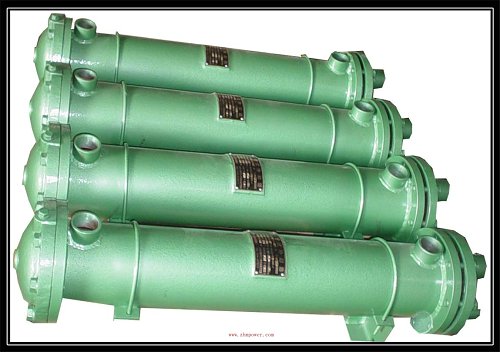

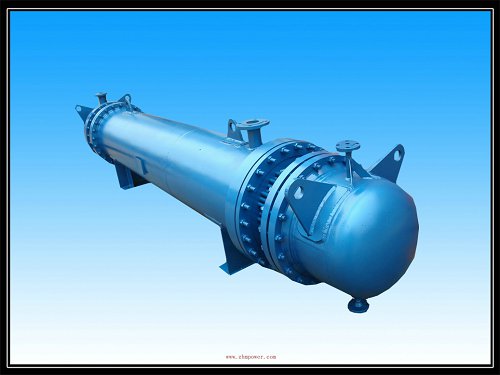

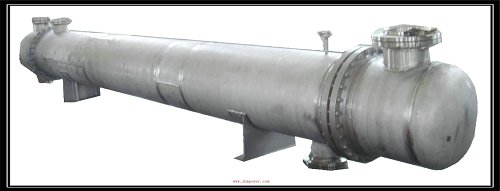

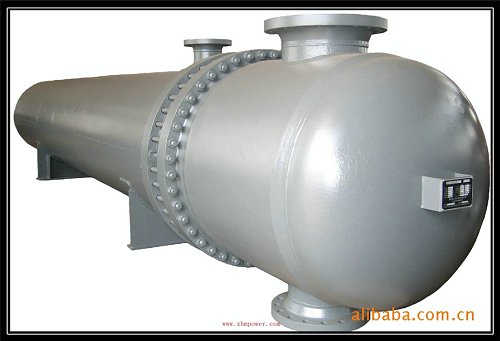

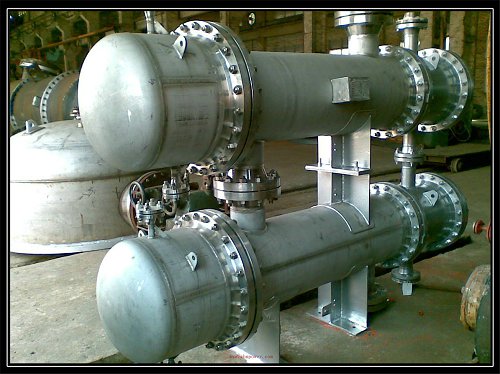

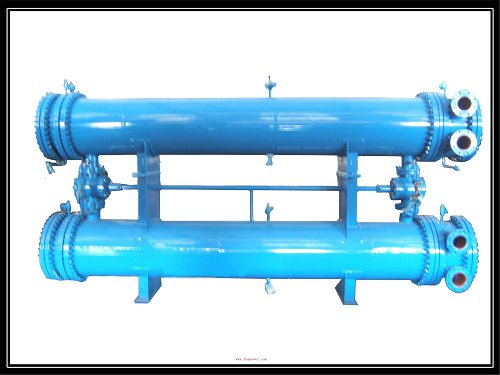

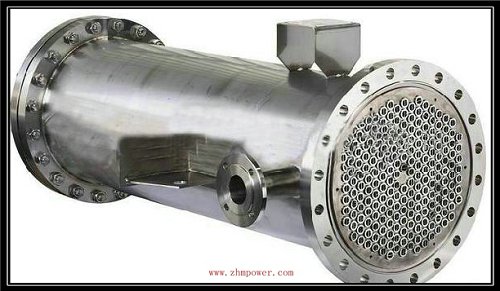

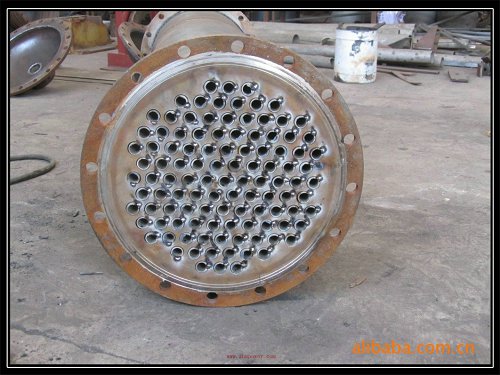

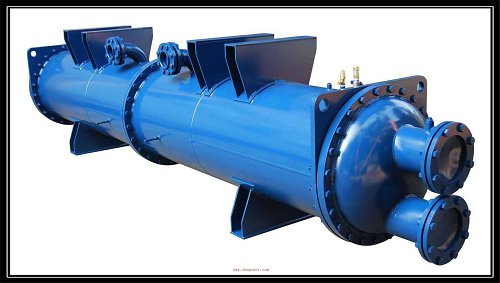

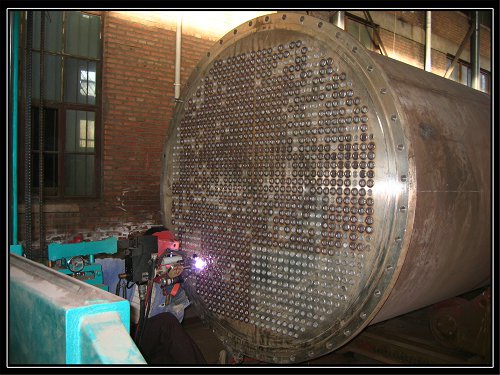

heat exchanger shell

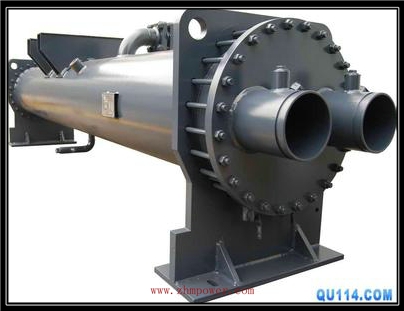

heat exchanger shell
1.Material: carbon steel, SS304, SS316L, titanium
2.Type: Fixed tubesheet type heat exchanger , Floating head type heat exchanger ,U type tube heat exchanger
3.Structure: Single tube pass , Double tube pass, Multitube pass
4.Heat transfer area:0.5-500m2
Main technical parameters of Fixed tubesheet type heat exchanger
NORMINAL DIAMETER | NORMINAL PRESSURE | THE PATH NO.OF TUBES | NO. OF TUBES | NO. OF TUBES IN THE CENTER | FLOWING AREA OF THE TUBE SECTION | CALCULATION OF HEAT TRANSFER AREA | |||||
DN | PN | N | n | m2 | |||||||
mm | Mpa | m2 | L=1500mm | L=2000mm | L=3000mm | L=4500mm | L=6000mm | L=9000mm | |||
159 | 1.60 2.50 4.00 6.40 | 1 | 15 | 5 | 0.0027 | 1.3 | 1.7 | 2.6 | - | - | - |
219 | 33 | 7 | 0.0058 | 2.8 | 3.7 | 5.7 | - | - | - | ||
273 | 1 | 65 | 9 | 0.0115 | 5.4 | 7.4 | 11.3 | 17.1 | 22.9 | - | |
2 | 56 | 8 | 0.0049 | 4.7 | 6.4 | 9.7 | 14.7 | 19.7 | - | ||
325 | 1 | 99 | 11 | 0.0175 | 8.3 | 11.2 | 17.1 | 26.0 | 34.9 | - | |
2 | 88 | 10 | 0.0078 | 7.4 | 10.0 | 15.2 | 23.1 | 31.0 | - | ||
4 | 68 | 11 | 0.0030 | 5.7 | 7.7 | 11.8 | 17.9 | 23.9 | - | ||
400 | 0.60 1.00 1.60 2.50 4.00 | 1 | 174 | 14 | 0.0307 | 14.5 | 19.7 | 30.1 | 45.7 | 61.3 | - |
2 | 164 | 15 | 0.0145 | 13.7 | 18.6 | 28.4 | 43.1 | 57.8 | - | ||
4 | 146 | 14 | 0.0065 | 12.2 | 16.6 | 25.3 | 38.3 | 51.4 | - | ||
450 | 1 | 237 | 17 | 0.0419 | 19.8 | 26.9 | 41.0 | 62.2 | 83.5 | - | |
2 | 220 | 16 | 0.0194 | 18.4 | 25.0 | 38.1 | 57.8 | 77.5 | - | ||
4 | 200 | 16 | 0.0088 | 16.7 | 22.7 | 34.6 | 52.5 | 70.4 | - | ||
500 | 1 | 275 | 19 | 0.0486 | - | 31.2 | 47.6 | 72.2 | 96.8 | - | |
2 | 256 | 18 | 0.0226 | - | 29.0 | 44.3 | 67.2 | 90.2 | - | ||
4 | 222 | 18 | 0.0098 | - | 25.2 | 38.4 | 58.3 | 78.2 | - | ||
600 | 1 | 430 | 22 | 0.0760 | - | 48.8 | 74.4 | 112.9 | 151.4 | - | |
2 | 416 | 23 | 0.0368 | - | 47.2 | 72.0 | 109.3 | 146.5 | - | ||
4 | 370 | 22 | 0.0163 | - | 42.0 | 64.0 | 97.2 | 130.3 | - | ||
6 | 360 | 20 | 0.0106 | - | 40.8 | 62.3 | 94.5 | 126.8 | - | ||
700 | 1 | 607 | 27 | 0.1037 | - | - | 105.1 | 159.4 | 213.8 | - | |
2 | 574 | 27 | 0.0507 | - | - | 99.4 | 150.8 | 202.1 | - | ||
4 | 542 | 27 | 0.0239 | - | - | 93.8 | 142.3 | 190.9 | - | ||
6 | 518 | 24 | 0.0153 | - | - | 39.7 | 136.0 | 182.4 | - | ||
800 | 0.60 1.00 1.60 2.50 4.00 | 1 | 797 | 31 | 0.1408 | - | - | 138.0 | 209.3 | 280.7 | - |
2 | 776 | 31 | 0.0686 | - | - | 134.3 | 203.8 | 273.3 | - | ||
4 | 722 | 31 | 0.0319 | - | - | 125.0 | 189.8 | 254.3 | - | ||
6 | 710 | 30 | 0.0209 | - | - | 122.9 | 186.5 | 250.0 | - | ||
900 | 1 | 1009 | 35 | 0.1783 | - | - | 174.7 | 265.0 | 355.3 | 536.0 | |
2 | 988 | 35 | 0.0873 | - | - | 171.0 | 259.5 | 347.9 | 524.9 | ||
4 | 938 | 35 | 0.0414 | - | - | 162.4 | 246.4 | 330.3 | 498.3 | ||
6 | 914 | 34 | 0.0269 | - | - | 158.2 | 240.0 | 321.9 | 485.6 | ||
1000 | 1 | 1267 | 39 | 0.2239 | - | - | 219.3 | 332.8 | 446.2 | 673.1 | |
2 | 1234 | 39 | 0.1090 | - | - | 213.6 | 324.1 | 434.6 | 655.6 | ||
4 | 1186 | 39 | 0.0524 | - | - | 205.3 | 311.5 | 417.7 | 630.1 | ||
6 | 1148 | 38 | 0.0338 | - | - | 198.7 | 3.1 | 404.3 | 609.9 | ||
1100 | 1 | 1501 | 43 | 0.2652 | - | - | - | 394.2 | 528.6 | 797.4 | |
2 | 1470 | 43 | 0.1299 | - | - | - | 386.1 | 517.7 | 780.9 | ||
4 | 1450 | 43 | 0.0641 | - | - | - | 380.8 | 510.6 | 770.3 | ||
6 | 1380 | 42 | 0.0406 | - | - | - | 362.4 | 486.0 | 733.1 | ||
1200 | 1 | 1837 | 47 | 0.3246 | - | - | - | 482.5 | 646.9 | 975.9 | |
2 | 1816 | 47 | 0.1605 | - | - | - | 476.9 | 639.5 | 964.7 | ||
4 | 1732 | 47 | 0.0765 | - | - | - | 454.9 | 610.0 | 920.1 | ||
6 | 1716 | 46 | 0.0505 | - | - | - | 450.7 | 604.3 | 911.6 | ||
1300 | 0.25 0.60 1.00 1.60 2.50 | 1 | 2123 | 51 | 0.3752 | - | - | - | 557.6 | 747.7 | 1127.8 |
2 | 2080 | 51 | 0.1838 | - | - | - | 546.3 | 732.5 | 1105.0 | ||
4 | 2074 | 50 | 0.0916 | - | - | - | 544.7 | 730.4 | 1101.8 | ||
6 | 2028 | 48 | 0.0597 | - | - | - | 532.6 | 714.2 | 1077.4 | ||
Main technical parameters of U type tube heat exchanger
NORMINAL DIAMETER | THE PATH NO. OF TUBES | NO. OF TUBES | NO. OF TUBES IN THE CENTER | FLOWING AREA OF THE TUBE SECTION(m2) | CALCULATION OF HEAT TRANSFER AREA (m2) | |||||||
DN | N | TUBE DIAMETER(mm) d | d×δt | L=3000mm | L=6000mm | |||||||
mm | 19 | 25 | 19 | 25 | 19×2 | 25×2 | 25×2.5 | 19 | 25 | 19 | 25 | |
325 | 2 | 38 | 13 | 11 | 6 | 0.0067 | 0.0045 | 0.0041 | 13.4 | 6 | 27.0 | 12.1 |
4 | 30 | 12 | 5 | 5 | 0.0027 | 0.0021 | 0.0019 | 10.6 | 5.6 | 21.3 | 11.2 | |
426 | 2 | 77 | 32 | 15 | 8 | 0.0136 | 0.0111 | 0.0100 | 26.9 | 14.7 | 54.5 | 29.8 |
400 | 4 | 68 | 28 | 8 | 7 | 0.0060 | 0.0048 | 0.0044 | 23.8 | 12.9 | 48.2 | 26.1 |
500 | 2 | 128 | 57 | 19 | 10 | 0.0227 | 0.0197 | 0.0179 | 44.6 | 26.1 | 90.5 | 53.0 |
4 | 114 | 56 | 10 | 9 | 0.0101 | 0.0097 | 0.0088 | 39.7 | 25.7 | 80.5 | 52.1 | |
600 | 2 | 199 | 94 | 23 | 13 | 0.0352 | 0.0326 | 0.0295 | 69.1 | 42.9 | 140.3 | 87.2 |
4 | 184 | 90 | 12 | 11 | 0.0163 | 0.0155 | 0.0141 | 63.9 | 41.1 | 129.7 | 83.5 | |
700 | 2 | 276 | 129 | 27 | 15 | 0.0492 | 0.0453 | 0.0411 | - | - | 194.1 | 119.4 |
4 | 258 | 128 | 12 | 13 | 0.0228 | 0.0221 | 0.0201 | - | - | 181.4 | 118.4 | |
800 | 2 | 367 | 182 | 31 | 17 | 0.0650 | 0.0630 | 0.0571 | - | - | 257.7 | 168.0 |
4 | 346 | 176 | 16 | 15 | 0.0306 | 0.0304 | 0.0276 | - | - | 242.8 | 162.5 | |
900 | 2 | 480 | 231 | 35 | 19 | 0.0850 | 0.0800 | 0.0725 | - | - | 336.2 | 212.8 |
4 | 454 | 226 | 16 | 17 | 0.0402 | 0.0391 | 0.0355 | - | - | 317.8 | 208.2 | |
1000 | 2 | 603 | 298 | 39 | 21 | 0.1067 | 0.1032 | 0.0936 | - | - | 421.5 | 273.9 |
4 | 576 | 292 | 20 | 19 | 0.0510 | 0.0505 | 0.0458 | - | - | 402.4 | 268.4 | |
1100 | 2 | 738 | 363 | 43 | 24 | 0.1306 | 0.1257 | 0.1140 | - | - | 514.6 | 332.9 |
4 | 706 | 356 | 20 | 21 | 0.0625 | 0.0616 | 0.0559 | - | - | 492.2 | 326.5 | |
1200 | 2 | 885 | 436 | 47 | 26 | 0.1566 | 0.1510 | 0.1369 | - | - | 615.8 | 399.0 |
4 | 852 | 428 | 24 | 21 | 0.0754 | 0.0741 | 0.0672 | - | - | 592.6 | 391.7 |
