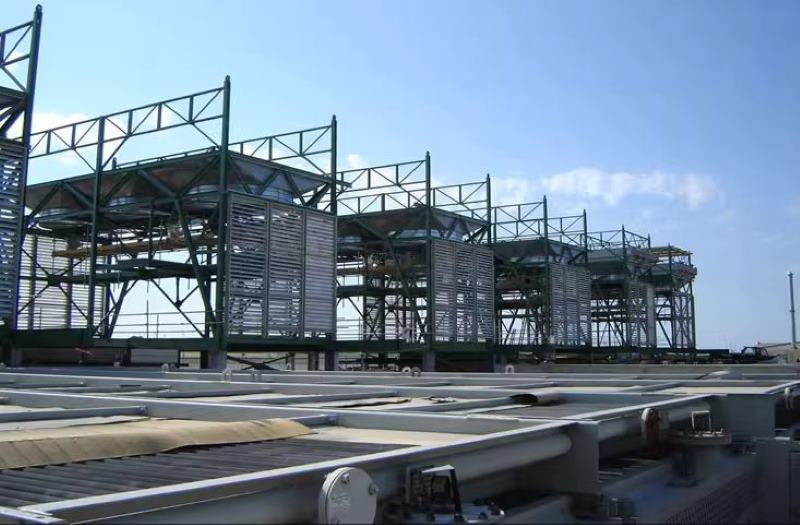

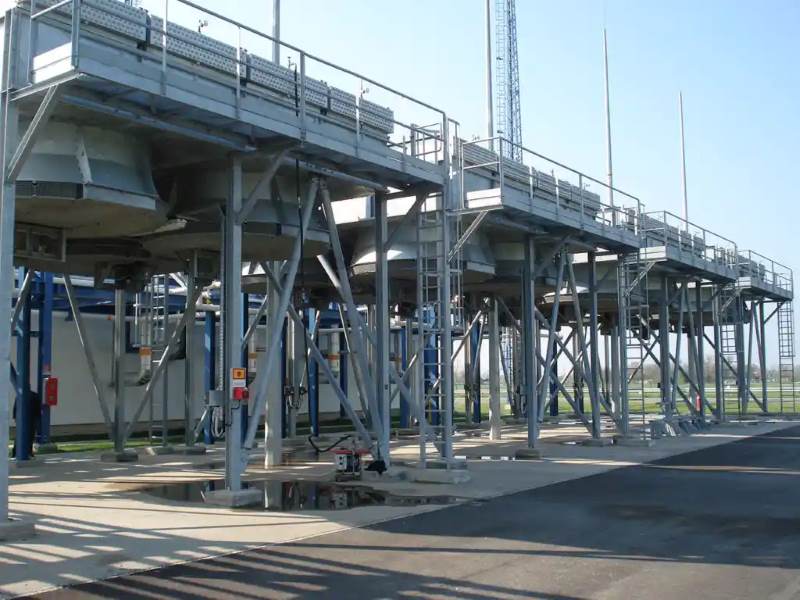

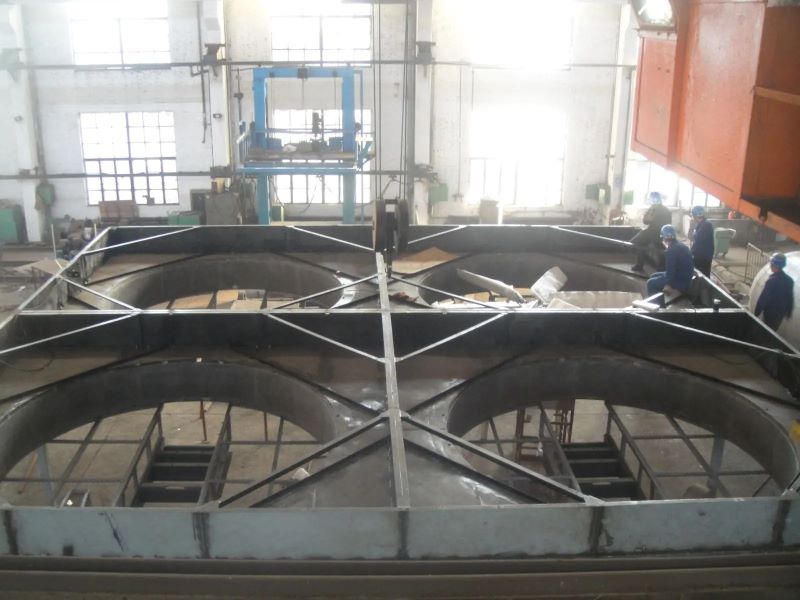

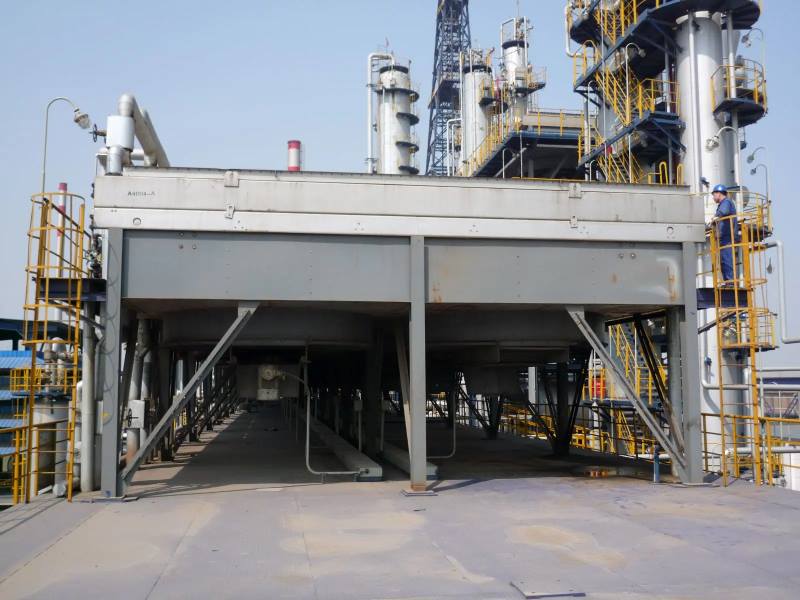

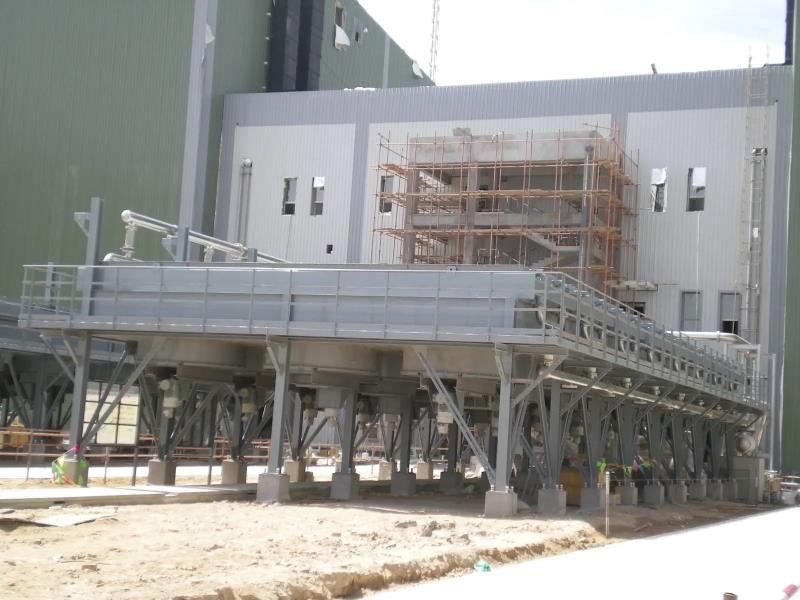

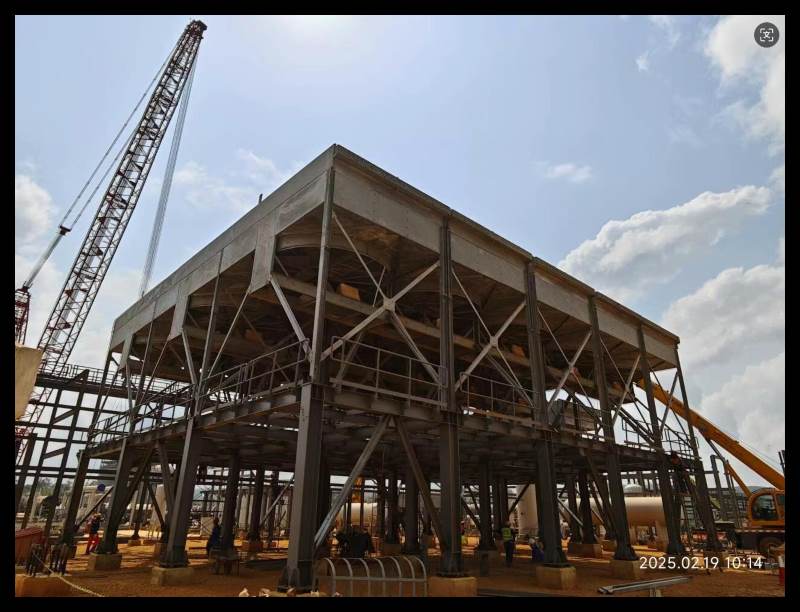

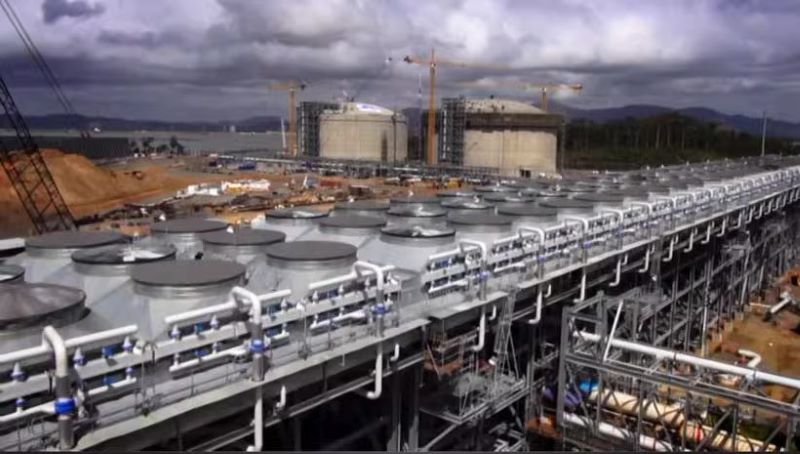

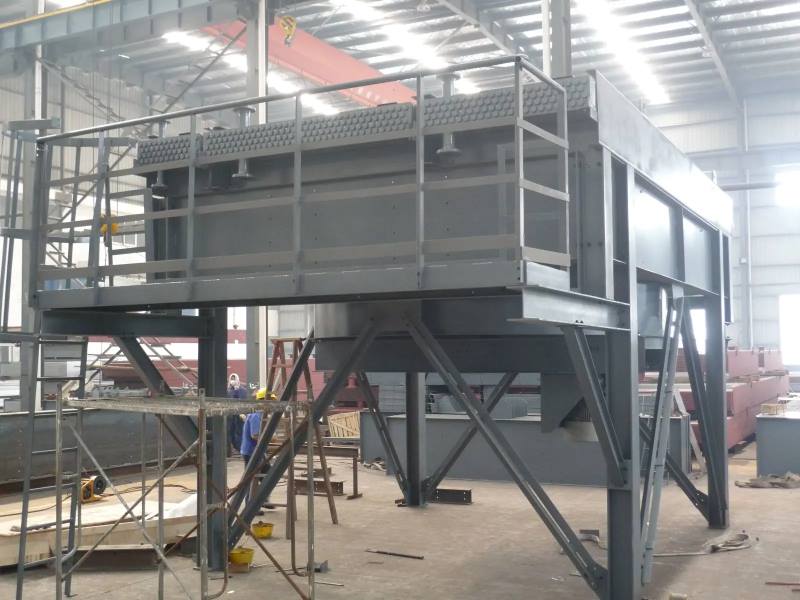

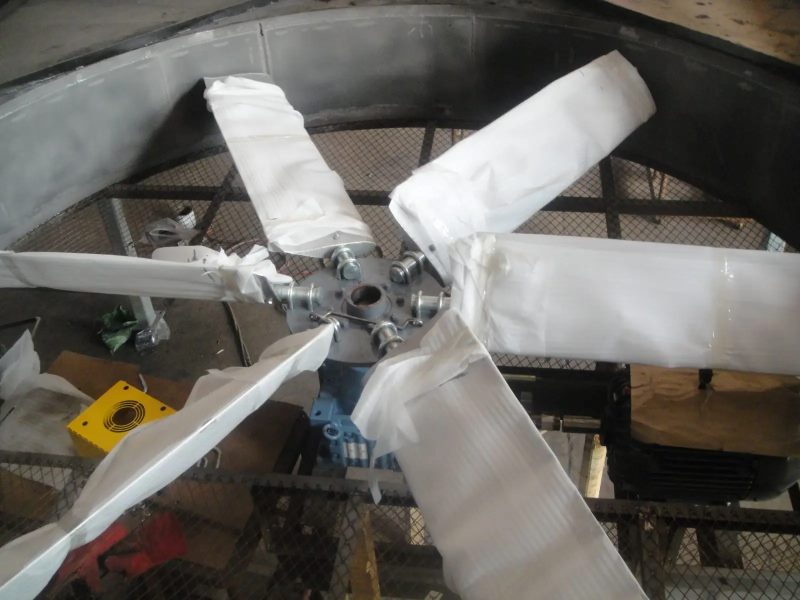

Lower Steel Structure Frames ACC Air Coolers

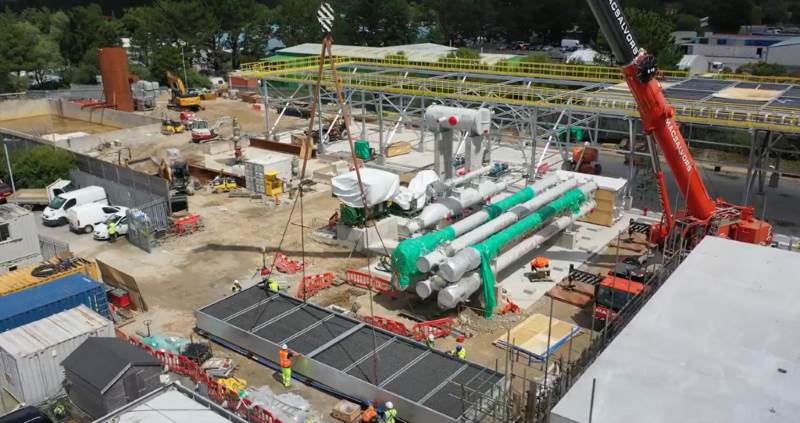

Project Name: Lower Structure ACC Air Coolers,GEX300-United Downs Deep Geothermal Project, Including Ladders, walkways,SS316L Bolts/Nuts/washers;

tolerances acc. EN/ISO 22768 - C
- welding acc. EN 15614
- welds quality acc. EN/ISO 5817 - C
- welds inspection acc. - EN17637
- all steel parts were hot dip galvanized according EN/ISO 1461
(  suitable holes for zinc draining on hollow sections opened in workshop)
- handrails and ladder cages without HDG protection. Yellow safety color coating with painting cycle suitable for C4 corrosivity ambient according to ISO 12944 as agreed.
- Material certificates for plates/angles according to EN 10204 3.1/2.2 as agreed
- All production strictly carried out in accordance with
(1) Document List (2) Packing List, (3) Fabrication Plan, (4) Manufacturing Data Book(MDB), (5) Inspection Data Book, (6)ACC structures, (7)O&M Manual, (8) Painting/HDG Procedure/Certificate, (9) Packing Procedure, (10) Material Certificates, (11) ACC structure shop drawings (12) ACC structure Tekla Model

Project Overview:

The Lower Structure ACC Air Coolers for the GEX300-United Downs Deep Geothermal Project involve structural components (steel frames, ladders, walkways) and SS316L stainless steel fasteners (bolts/nuts/washers). The project adheres to stringent European standards for fabrication, corrosion protection, and documentation. Below is a structured breakdown of key requirements and considerations:

1. Technical Specifications & Standards

Tolerances: Compliant with EN/ISO 22768 - C (ensures dimensional accuracy for assembly).

Welding:

Procedures qualified per EN 15614 (ensures weld integrity).

Weld quality class EN/ISO 5817 - C (moderate quality for non-critical static loads).

Inspection via EN 17637 (visual weld examination).

Corrosion Protection:

Hot-dip galvanizing (HDG) per EN/ISO 1461 for steel parts, with zinc-draining holes in hollow sections (prevents trapped moisture).

Handrails/ladder cages: Painted with yellow safety coating for visibility, rated for C4 corrosivity (e.g., coastal/industrial environments) under ISO 12944.

Material Certification: Plates/angles certified to EN 10204 3.1/2.2 (traceability of material properties).

2. Fabrication & Quality Assurance

Production Compliance: Follows 12 critical documents, including:

Fabrication Plan, Manufacturing/Inspection Data Books (MDB/IDB), Tekla Model (3D structural design).

Painting/HDG procedures, packing lists, and O&M manuals.

Documentation: Ensures traceability, e.g., material certificates validate steel quality; MDB records production steps.

3. Key Design Considerations

Safety Compliance: Frameworks, Ladders and walkways meet ergonomic/load standards; yellow coating enhances visibility.

Material Selection:

SS316L bolts/nuts: High corrosion resistance for harsh geothermal environments.

HDG vs. Paint: HDG for structural longevity, paint for non-galvanized safety components.

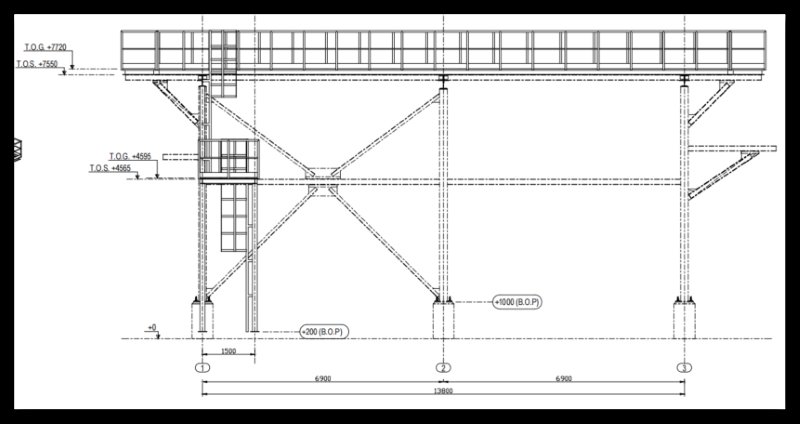

Tekla Model: Ensures precision in shop drawings and clash detection during assembly.

4. Challenges & Mitigation

HDG Process: Verify zinc drainage holes are correctly placed to avoid uneven coating.

C4 Coating Durability: Confirm paint thickness/cycles meet ISO 12944 for salt-rich or humid environments.

Documentation Gaps: Audit MDB/IDB to ensure all inspections (e.g., weld checks) are recorded.

5. Stakeholder Implications

Fabrication Contractor-ZHM: Must strictly follow EN standards and document compliance.

Client/Operator: Relies on O&M manuals for maintenance, especially for HDG/painted components.

Inspectors: Focus on weld quality (EN 5817-C) and HDG adherence (EN 1461).

Conclusion: This project emphasizes rigorous adherence to European standards, corrosion management for geothermal conditions, and robust documentation. Success hinges on coordination between fabrication (via Tekla), quality checks, and clear handover of operational guidelines.
